Tutorial

Welcome to ktplotspy! This is a python library to help visualise CellPhoneDB results, ported from the original ktplots R package (which still has several other visualisation options). Here, we will go through a quick tutorial on how to use the functions in this package.

Import libraries

[1]:

import anndata as ad
import pandas as pd
import ktplotspy as kpy
import matplotlib.pyplot as plt

from pathlib import Path

Prepare input

We will need 3 files to use this package, the h5ad file used for CellPhoneDB,the means.txt, pvalues.txt. deconvoluted.txt is only used for plot_cpdb_chord.

[2]:

# read in the files
# 1) .h5ad file used for performing CellPhoneDB
DATADIR = Path("../../data/")

adata = ad.read_h5ad(DATADIR / "kidneyimmune.h5ad")

# 2) output from CellPhoneDB
means = pd.read_csv(DATADIR / "out" / "means.txt", sep="\t")
pvals = pd.read_csv(DATADIR / "out" / "pvalues.txt", sep="\t")
decon = pd.read_csv(DATADIR / "out" / "deconvoluted.txt", sep="\t")

Heatmap

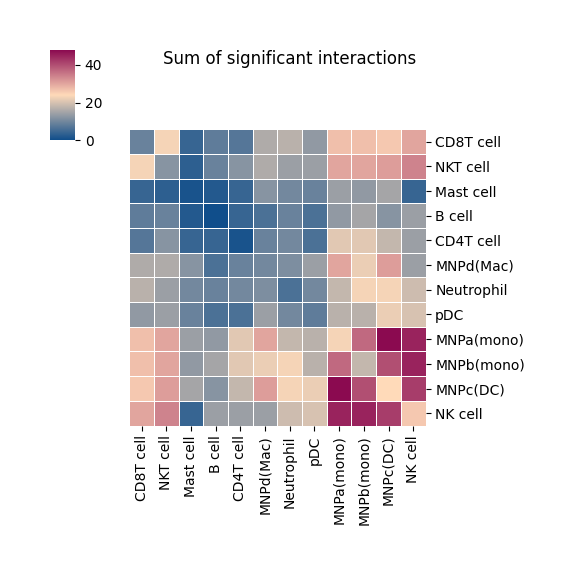

The original heatmap plot from CellPhoneDB can be achieved with this reimplemented function.

[3]:

kpy.plot_cpdb_heatmap(pvals=pvals, figsize=(5, 5), title="Sum of significant interactions")

[3]:

<seaborn.matrix.ClusterGrid at 0x77fbfac03650>

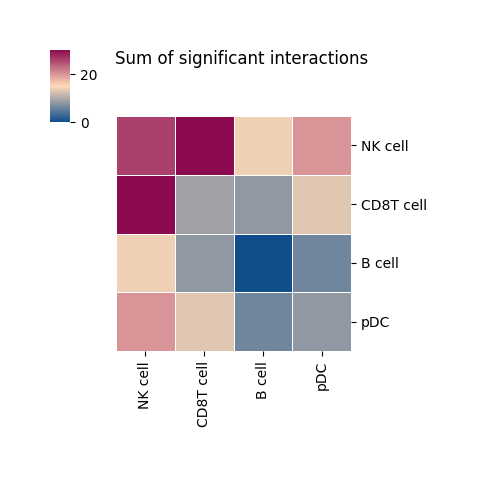

You can also specify specific celltypes to plot.

[4]:

kpy.plot_cpdb_heatmap(
    pvals=pvals, cell_types=["NK cell", "pDC", "B cell", "CD8T cell"], figsize=(4, 4), title="Sum of significant interactions"
)

[4]:

<seaborn.matrix.ClusterGrid at 0x77fbf0422c60>

The current heatmap is directional (check count_network and interaction_edges for more details in return_tables = True).

To obtain the heatmap where the interaction counts are not symmetrical, do:

[5]:

kpy.plot_cpdb_heatmap(
    pvals=pvals,
    figsize=(5, 5),
    title="Sum of significant interactions",
    symmetrical=False,
)

[5]:

<seaborn.matrix.ClusterGrid at 0x77fbfa82f1d0>

The values for the symmetrical=False mode follow the direction of the L-R direction where it’s always moleculeA:celltypeA -> moleculeB:celltypeB.

Therefore, if you trace on the x-axis for celltype A [MNPa(mono)] to celltype B [CD8T cell] on the y-axis:

A -> B is 18 interactions

Whereas if you trace on the y-axis for celltype A [MNPa(mono)] to celltype B [CD8T cell] on the x-axis:

A -> B is 9 interactions

symmetrical=True mode will return 18+9 = 27

Dot plot

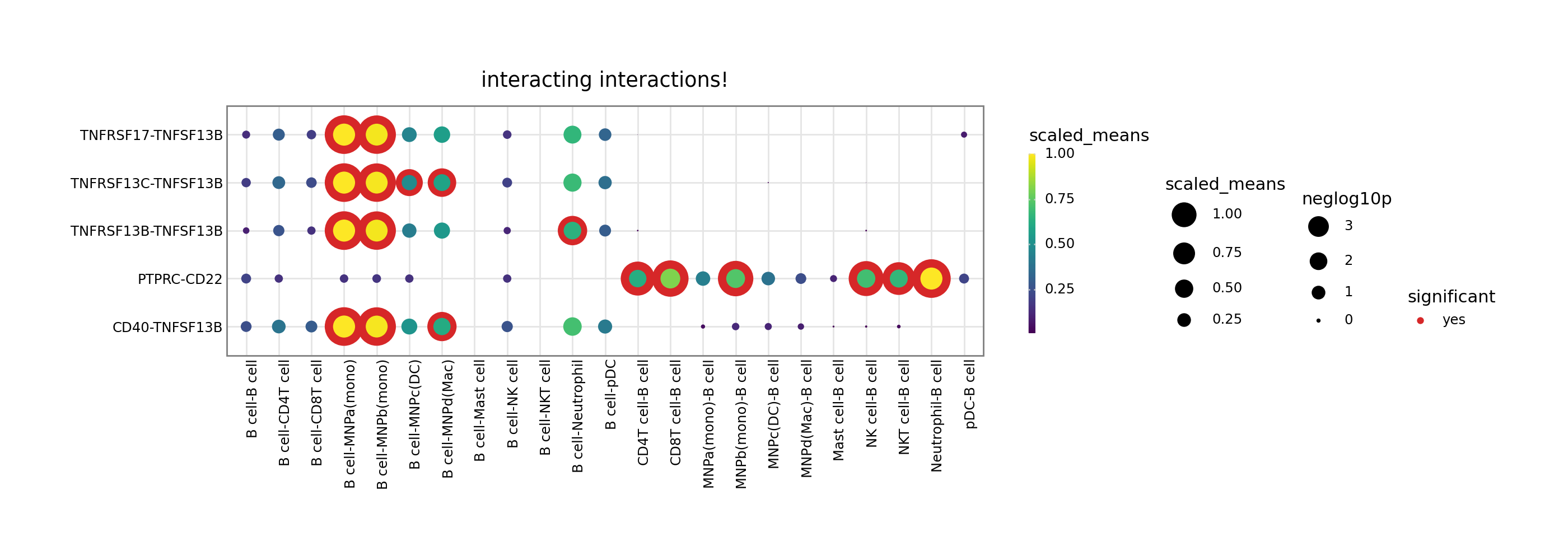

A simple usage of plot_cpdb is like as follows:

[6]:

# TODO: How to specify the default plot resolution??
kpy.plot_cpdb(
    adata=adata,
    cell_type1="B cell",
    cell_type2=".",  # this means all cell-types
    means=means,
    pvals=pvals,
    celltype_key="celltype",
    genes=["PTPRC", "TNFSF13B"],
    figsize=(13, 4),
    title="interacting interactions!",
)

[6]:

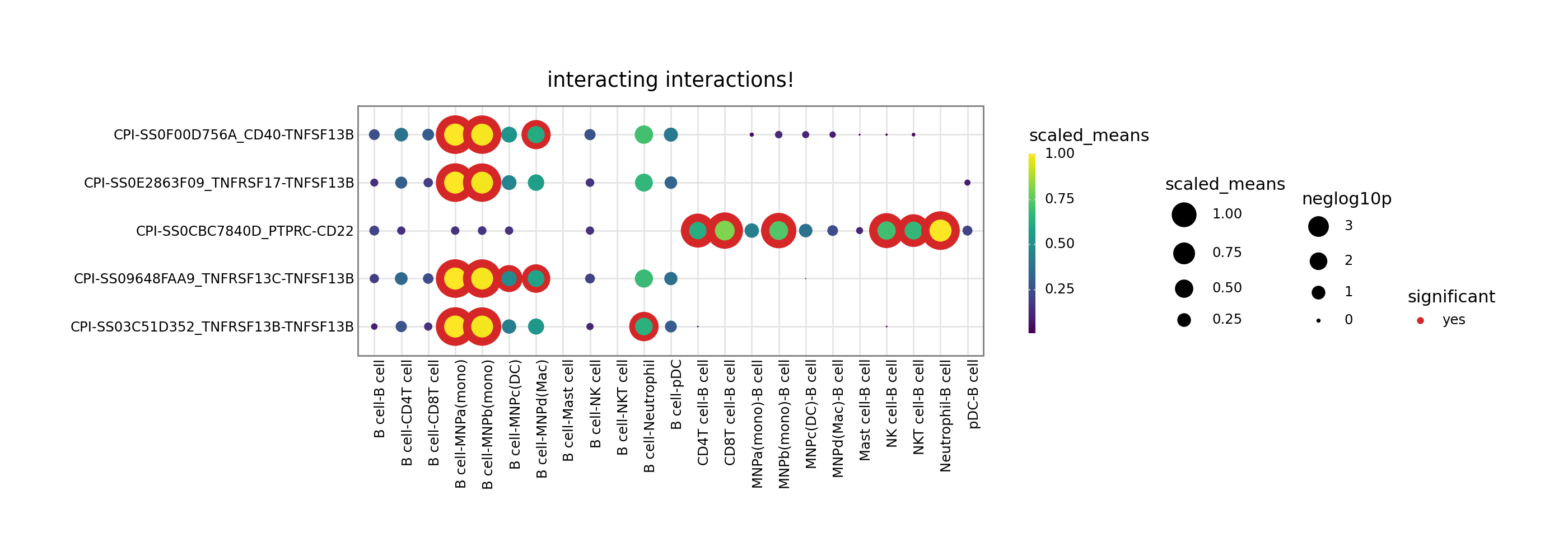

You can toggle keep_id_cp_interaction to keep the original interaction id. This is useful when there are duplicate interaction names (from cellphonedb V5 onwards).

[7]:

kpy.plot_cpdb(
    adata=adata,
    cell_type1="B cell",
    cell_type2=".",  # this means all cell-types
    means=means,
    pvals=pvals,
    celltype_key="celltype",
    genes=["PTPRC", "TNFSF13B"],
    figsize=(13, 4),
    title="interacting interactions!",
    keep_id_cp_interaction=True,
)

[7]:

You can also specify a gene_family.

[8]:

kpy.plot_cpdb(
    adata=adata,
    cell_type1=".",
    cell_type2=".",
    means=means,
    pvals=pvals,
    celltype_key="celltype",
    gene_family="chemokines",
    highlight_size=1,
    figsize=(20, 8),
)

[8]:

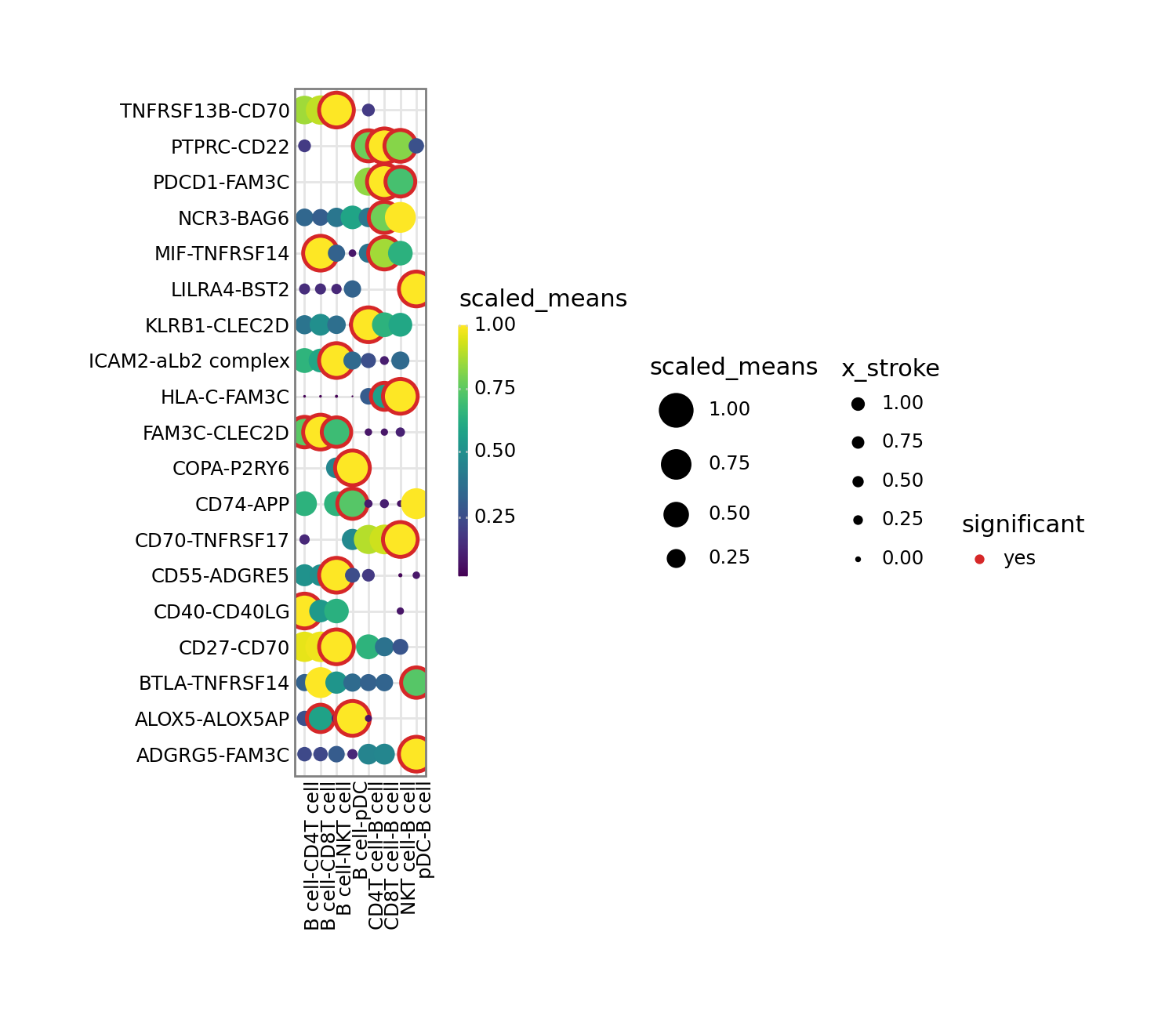

Or don’t specify either and it will try to plot all significant interactions.

[9]:

kpy.plot_cpdb(
    adata=adata,
    cell_type1="B cell",
    cell_type2="pDC|T",
    means=means,
    pvals=pvals,
    celltype_key="celltype",
    highlight_size=1,
    figsize=(6.5, 5.5),
)

[9]:

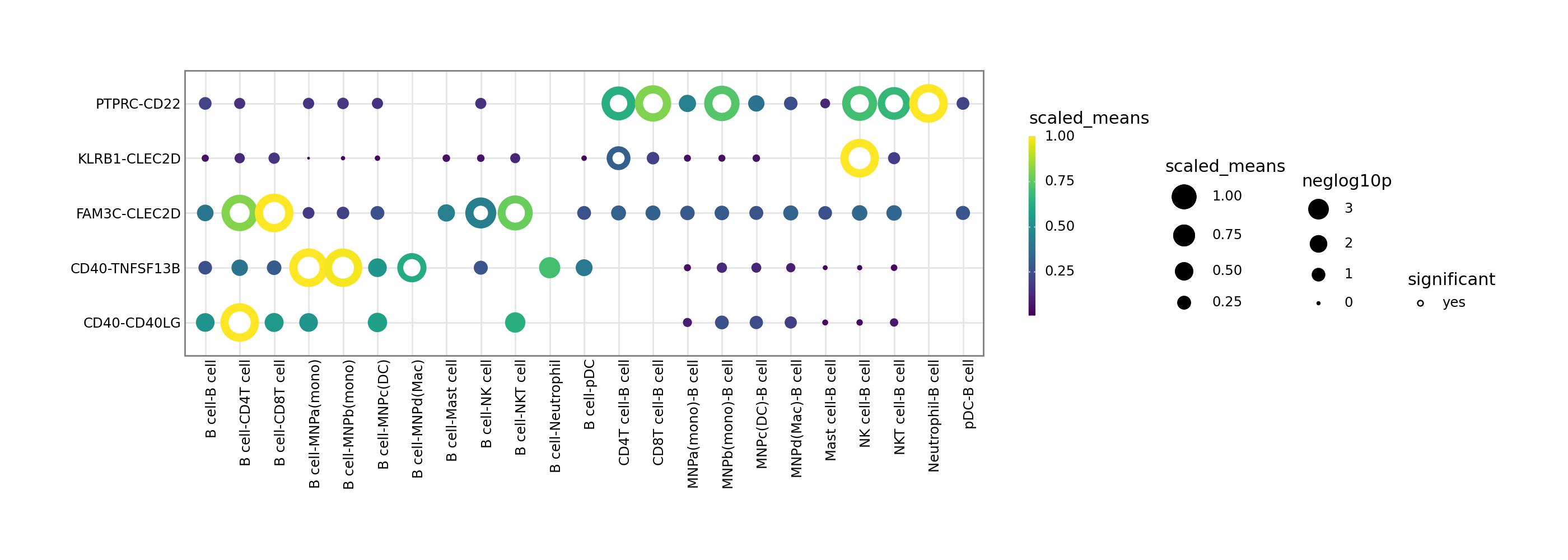

If you prefer, you can also use the squidpy inspired plotting style:

[10]:

kpy.plot_cpdb(
    adata=adata,
    cell_type1="B cell",
    cell_type2=".",
    means=means,
    pvals=pvals,
    celltype_key="celltype",
    genes=["PTPRC", "CD40", "CLEC2D"],
    default_style=False,
    figsize=(13, 4),
)

[10]:

Chord diagram

There is a re-implementation of a circos/chord diagram by leveraging on the pyCirclize package.

[11]:

kpy.plot_cpdb_chord(
    adata=adata,
    cell_type1="B cell",
    cell_type2=".",
    means=means,
    pvals=pvals,
    deconvoluted=decon,
    celltype_key="celltype",
    interaction=["PTPRC", "CD40", "CLEC2D"],
    link_kwargs={"direction": 1, "allow_twist": True, "r1": 95, "r2": 90},
    sector_text_kwargs={"color": "black", "size": 12, "r": 105, "adjust_rotation": True},
    legend_kwargs={"loc": "center", "bbox_to_anchor": (1, 1), "fontsize": 8},
    link_offset=1,
)

[11]:

<pycirclize.circos.Circos at 0x77fbea4a88f0>

Colour of links can be made to be the same as the celltype.

[12]:

kpy.plot_cpdb_chord(
    adata=adata,
    cell_type1="B cell",
    cell_type2=".",
    means=means,
    pvals=pvals,
    deconvoluted=decon,
    celltype_key="celltype",
    interaction=["PTPRC", "CD40", "CLEC2D"],
    link_kwargs={"direction": 1, "allow_twist": True, "r1": 90, "r2": 90},
    sector_text_kwargs={"color": "black", "size": 12, "r": 105, "adjust_rotation": True},
    legend_kwargs={"loc": "center", "bbox_to_anchor": (1, 1), "fontsize": 8},
    link_offset=1,
    same_producer_colors=True,
)

[12]:

<pycirclize.circos.Circos at 0x77fbe9fdcf80>

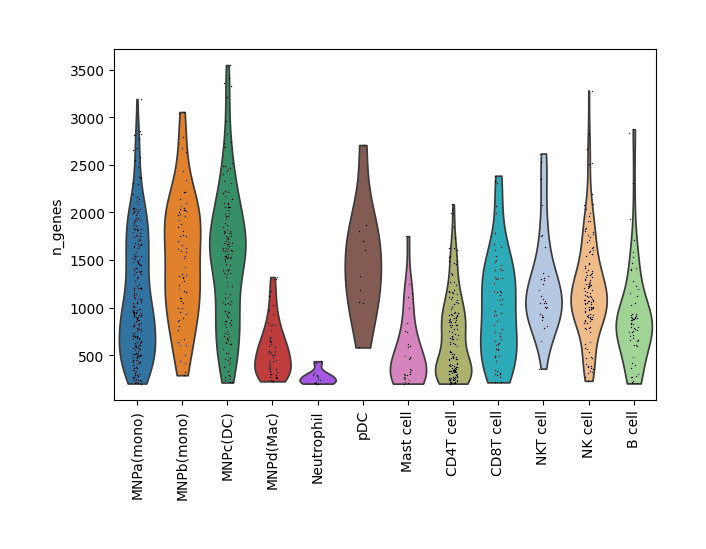

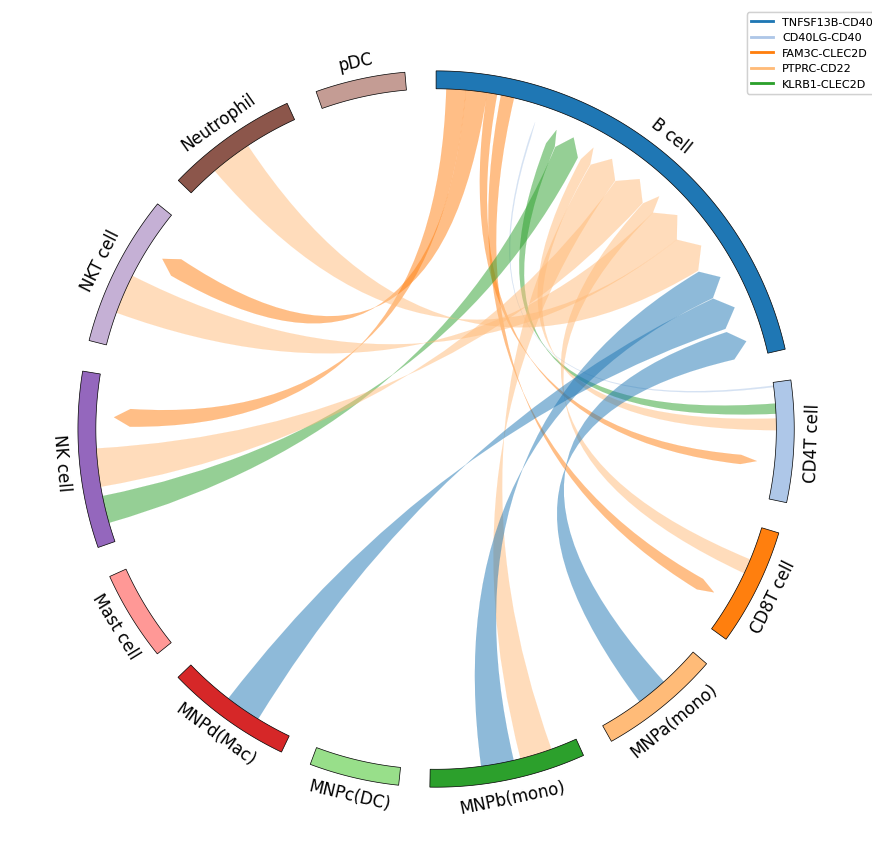

If your adata already has e.g. adata.uns['celltype_colors'], it will retrieve the sector_colours correctly:

[13]:

import scanpy as sc

sc.pl.violin(adata, ["n_genes"], groupby="celltype", rotation=90)
kpy.plot_cpdb_chord(
    adata=adata,
    cell_type1="B cell",
    cell_type2=".",
    means=means,
    pvals=pvals,
    deconvoluted=decon,
    celltype_key="celltype",
    interaction=["PTPRC", "CD40", "CLEC2D"],
    same_producer_colors=True,
    link_kwargs={"direction": 1, "allow_twist": True},
    sector_text_kwargs={"color": "black", "size": 12, "r": 105, "adjust_rotation": True},
    legend_kwargs={"loc": "center", "bbox_to_anchor": (1, 1), "fontsize": 8},
)

[13]:

<pycirclize.circos.Circos at 0x77fbe8fcffe0>

You can also provide dictionaries to change the colours for both sectors and links.

[14]:

kpy.plot_cpdb_chord(
    adata=adata,
    cell_type1="B cell",
    cell_type2=".",
    means=means,
    pvals=pvals,
    deconvoluted=decon,
    celltype_key="celltype",
    interaction=["PTPRC", "TNFSF13B", "BMPR2"],
    sector_colors={
        "B cell": "red",
        "NK cell": "blue",
        "CD4T cell": "black",
        "pDC": "brown",
        "Neutrophil": "grey",
        "Mast cell": "orange",
        "NKT cell": "pink",
        "CD8T cell": "cyan",
    },
    link_colors={"CD22-PTPRC": "red", "TNFSF13B-TNFRSF13B": "blue"},
)

[14]:

<pycirclize.circos.Circos at 0x77fbe8d80e30>

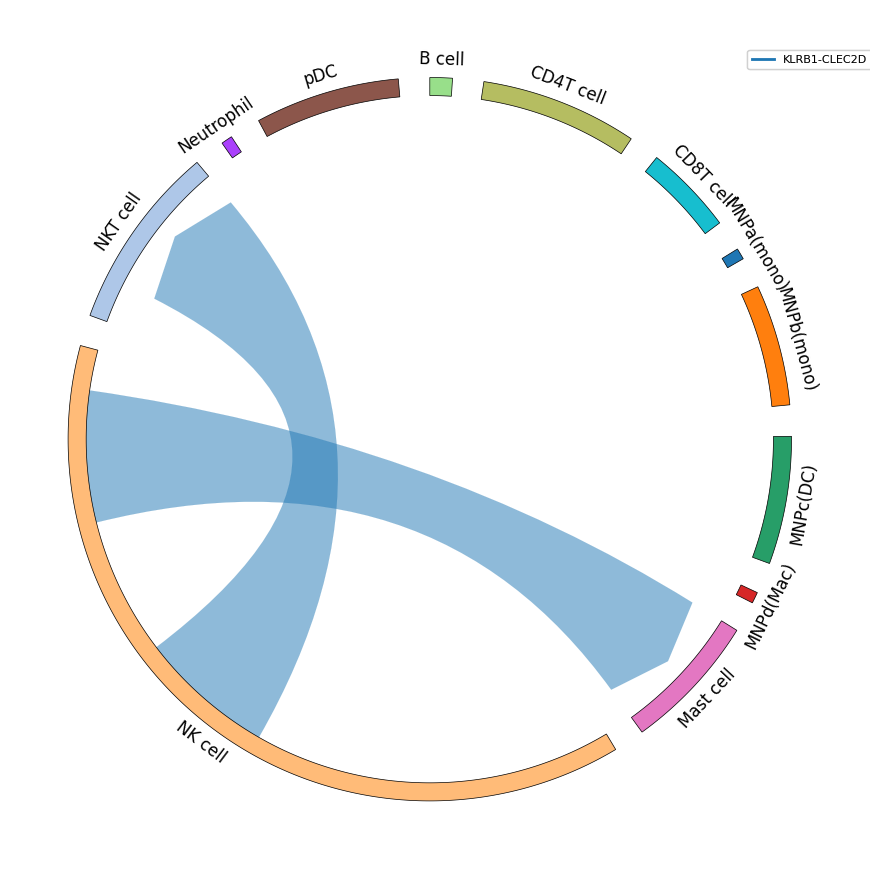

You can also just plot a specific interaction:

[15]:

kpy.plot_cpdb_chord(
    adata=adata,
    interaction="CLEC2D-KLRB1",
    keep_celltypes=["NKT cell", "Mast cell", "NK cell"],
    celltype_key="celltype",
    means=means,
    pvals=pvals,
    deconvoluted=decon,
    link_kwargs={"direction": 1, "allow_twist": False, "r1": 95, "r2": 90},
    sector_text_kwargs={"color": "black", "size": 12, "r": 105, "adjust_rotation": True},
    legend_kwargs={"loc": "center", "bbox_to_anchor": (1, 1), "fontsize": 8},
)

[15]:

<pycirclize.circos.Circos at 0x77fbe8fae5a0>

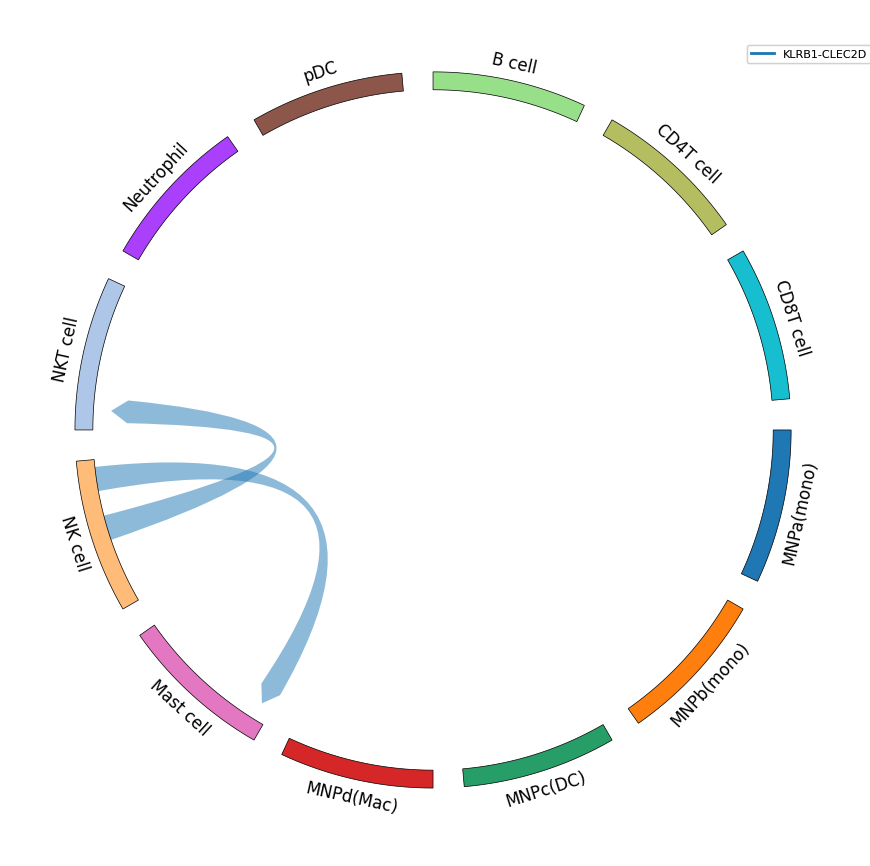

You can also fix the sector size to be equal, although this will cause the links to be squished.

[16]:

kpy.plot_cpdb_chord(
    adata=adata,
    interaction="CLEC2D-KLRB1",
    keep_celltypes=["NKT cell", "Mast cell", "NK cell"],
    celltype_key="celltype",
    means=means,
    pvals=pvals,
    deconvoluted=decon,
    link_kwargs={"direction": 1, "allow_twist": False, "r1": 95, "r2": 90},
    sector_text_kwargs={"color": "black", "size": 12, "r": 105, "adjust_rotation": True},
    legend_kwargs={"loc": "center", "bbox_to_anchor": (1, 1), "fontsize": 8},
    equal_sector_size=True,
)

[16]:

<pycirclize.circos.Circos at 0x77fbe8dfb050>

Saving the plots

For plot_cpdb, because it’s written with plotnine, you need to save it as follows:

p = plot_cpdb(...)
p.save(...)

For plot_cpdb_chord, because it’s written with pyCirclize, you can save it as follows:

p = plot_cpdb_chord(...)
p.savefig(...)

For other functions, you can use seaborn/matplotlib saving conventions e.g. plt.savefig

That’s it for now! Please check out the original ktplots R package if you are after other kinds of visualisations.

[ ]:
